Every Pond.
Around the Clock.
Always Under Control.

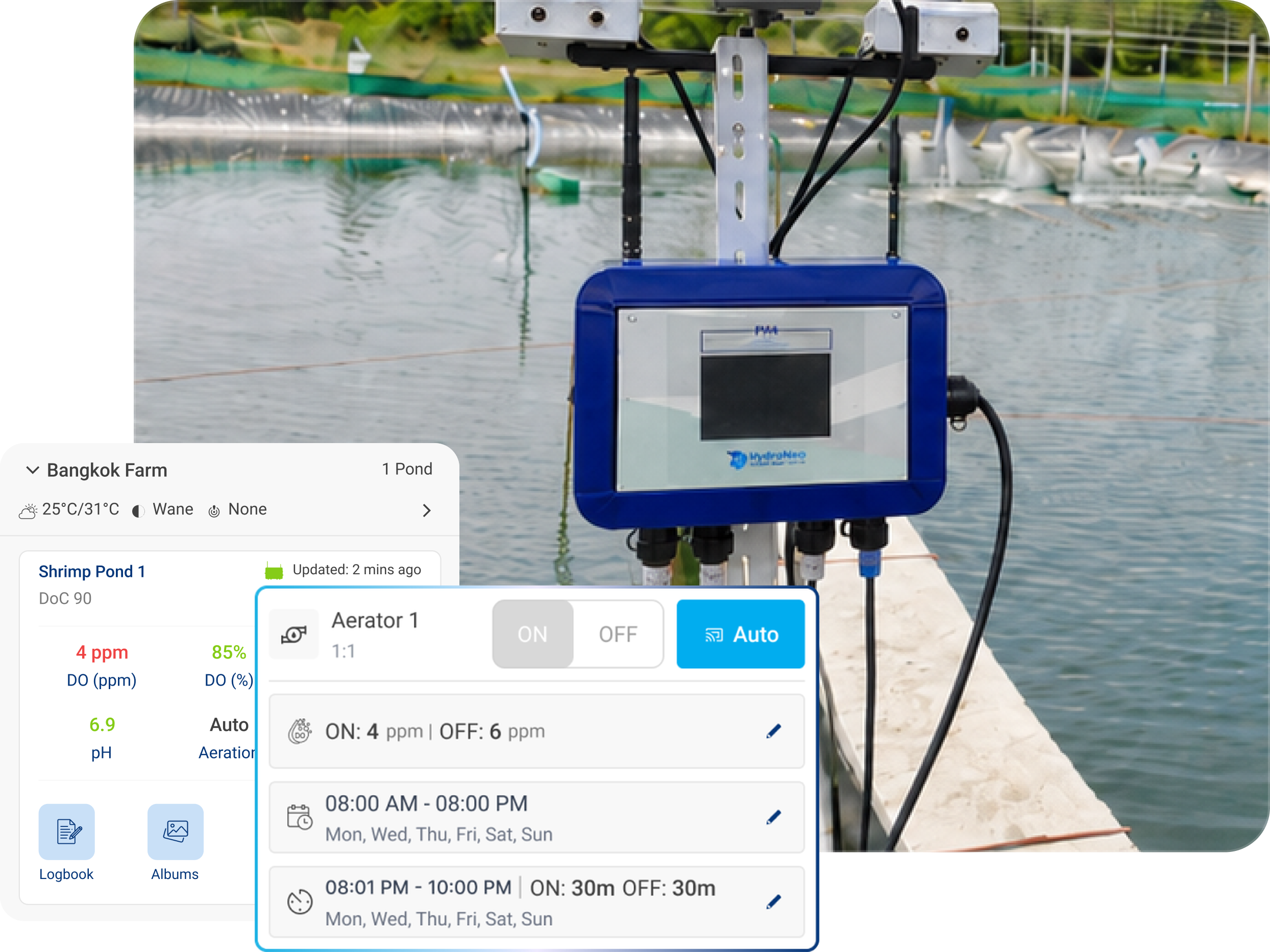

Monitor and automate your pond locally with the Mini Controller Pro. With IoT PLUS, pond data reaches FarmOS every 2 minutes for near real-time remote visibility.
Monitor. Stay informed. Automate.
Monitor pond conditions, automate responses, and stay informed wherever you are.
Monitor
Sensors continuously track key pond conditions.
Stay informed
See what happened and get notified when your pond needs attention.
Automate
The Mini Controller applies your rules locally and controls connected equipment automatically.
Mini Controller Pro
Low
DO below configured threshold
FarmOS
Pond 1 · 4 ppm
Automation
Aerator
Aeration running to restore DO.
Let Your Pond Respond Before
You Have To.
The Mini Controller runs your rules locally, letting HydroNeo react automatically to changing pond conditions or to routines you set. Aerators, pumps, lights, and valves wired through a Motor Control Box can all be automated the same way. DO Support runs on the device itself; Schedule and Interval require IoT PLUS.
DO Support
Included on-deviceSet a DO level in ppm or % saturation. Equipment turns on and off automatically when that threshold is crossed. This rule runs on the Mini Controller Pro itself, with or without a cloud connection.
Schedule
IoT PLUSActivate automation at specific times of day, independent of sensor readings. Set it once, run it every day.
Interval
IoT PLUSAutomate equipment using repeating intervals you configure.
One Modular System.
Built Around Your Pond.
From sensors and controllers to motor automation, build the HydroNeo setup that fits your pond today and grows with your farm.
-
Controller
Mini Controller Pro
The brain of the system. Monitors pond conditions and runs automation locally.
- 24/7 monitoring
- Local automation
- Built-in connectivity
View specifications Hide details for Mini Controller Pro
- Reads connected sensors continuously, around the clock.
- Runs DO Support automation locally on the device; Schedule and Interval modes come with IoT PLUS.
- Drives up to 16 Motor Control Boxes across 32 motor channels per controller.
- Built-in HydroNeo IoT SIM covers roughly 40 countries; Wi-Fi or your own SIM elsewhere.
- 3.5" color touchscreen · IP65 rated · 2-hour Li-ion battery backup.
- NBTC Class B certified · tested to IEC 62368-1:2018 · 12.3 VDC, 3.75A · 1.2 kg.
-
Sensors

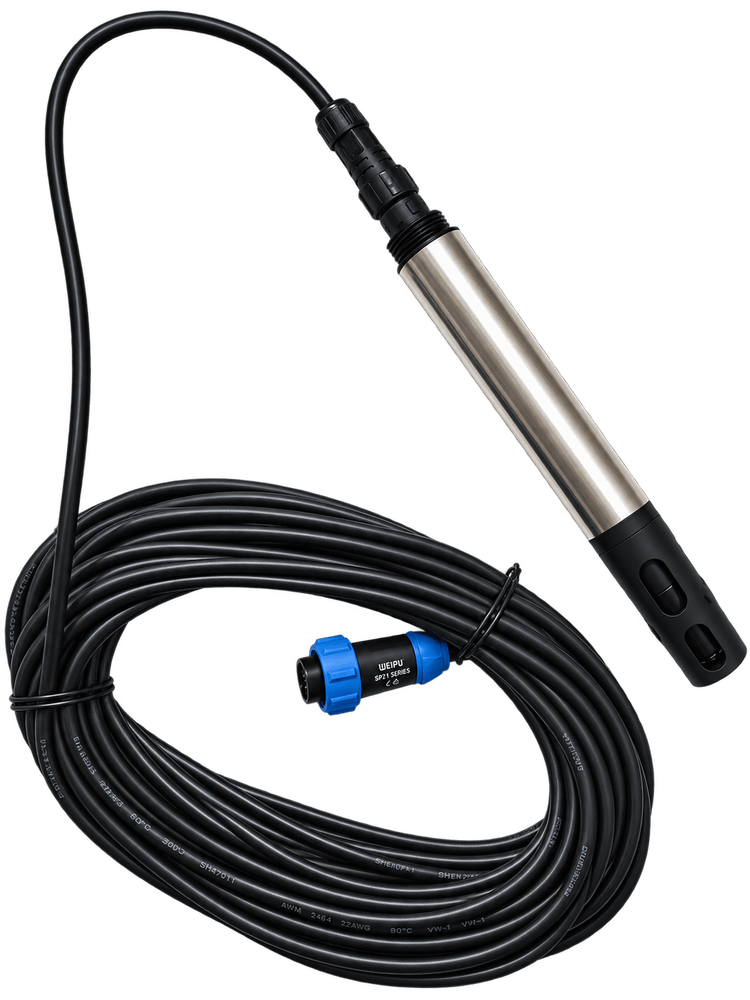

Sensor Suite
Measures the pond and environmental conditions your farm needs.
- DO + Temperature core
- pH
- Micro-climate
- Feed Level
View specifications Hide details for Sensor Suite
- Optical DO & Temperature is included as standard: fluorescence-based, no membranes, IP68, titanium body.
- Digital pH is an add-on: range pH 0 to 14, ±0.1 accuracy, IP68, 15 m cable.
- Micro-Climate add-on measures light, air temperature and humidity.
- Feed Level add-on is ultrasonic, 4 to 400 cm range, IP67.
- Self-cleaning holder auto-cleans every 30 minutes and holds up to 4 sensors.
- Readings are temperature-compensated; DO is also salinity-compensated.
-
Automation

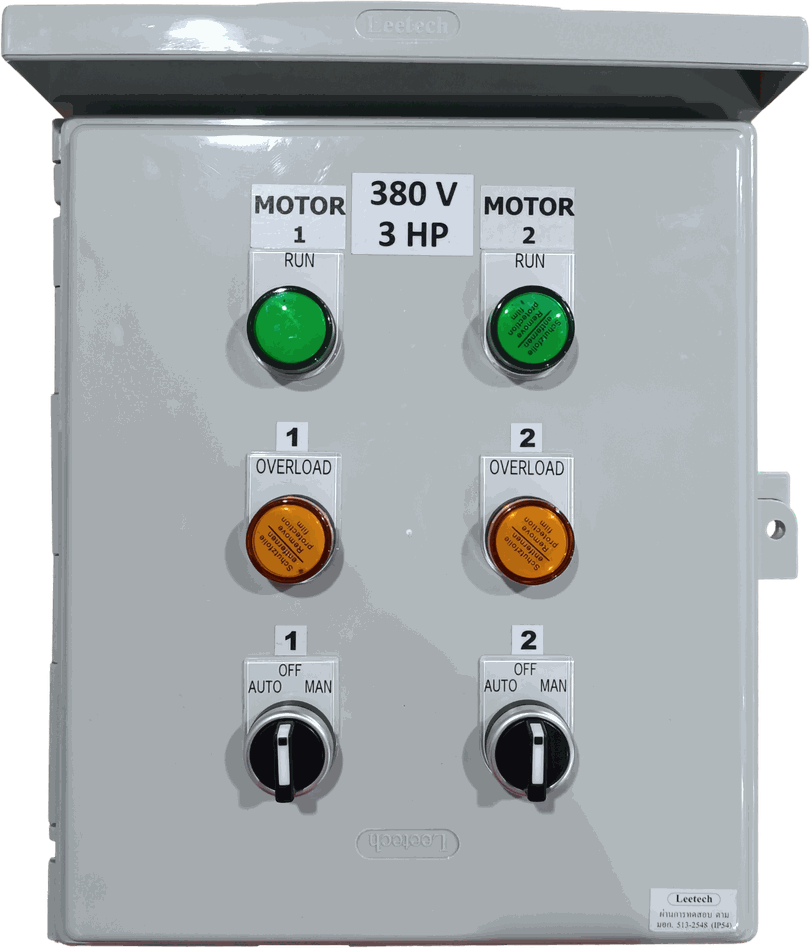

Motor Control Box (MCB-M)
Connects HydroNeo automation to aerators, pumps and other electrical equipment.
- Equipment control
- Local automation
- Multiple motor channels
View specifications Hide details for Motor Control Box (MCB-M)
- Available for 220V and 380V supplies; motor sizes of 1, 3 and 5 HP.
- 2 independently controlled channels per box.
- Mitsubishi contactors with built-in overload protection.
- Chain up to 16 MCBs across 32 motor channels per controller.
- Safety siren sounds before motors start; low-DO alerts supported.
- Daisy-chain waterproof connectors with automatic and manual override.
-
Retrofit

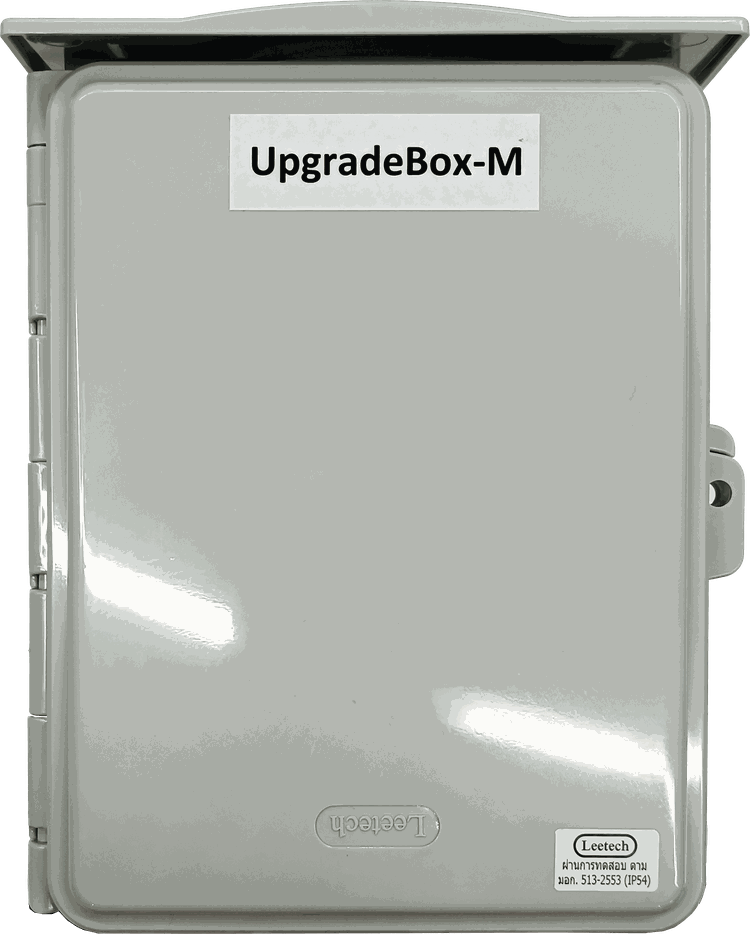

Upgrade Box-M
Adds HydroNeo automation to existing electrical infrastructure without replacing the current setup.
- Retrofit-friendly
- No box replacement
- Plug-and-play
View specifications Hide details for Upgrade Box-M
- Adds 2 independently controlled motor channels to existing wiring.
- Connects to your current electrical infrastructure, no need to replace it.
- Plug-and-play waterproof connection to the Mini Controller Pro.
- Daisy-chainable alongside additional Motor Control Boxes.
- Integrated siren for safety and operational alerts.
- Automatic and manual local override modes.
Exact products and full technical specifications live in Components & Specifications.
The Warning System
Behind Every Threshold.
You don't need to constantly watch the pond yourself.
HydroNeo tells you when something needs attention, and with IoT PLUS that notification reaches you within minutes of the event.
-
Threshold alerts
A monitored parameter moves outside the safe range you configured for that pond.
-
Sensor & equipment alerts
A sensor goes offline or unreachable, so a fault never quietly goes unnoticed.
-

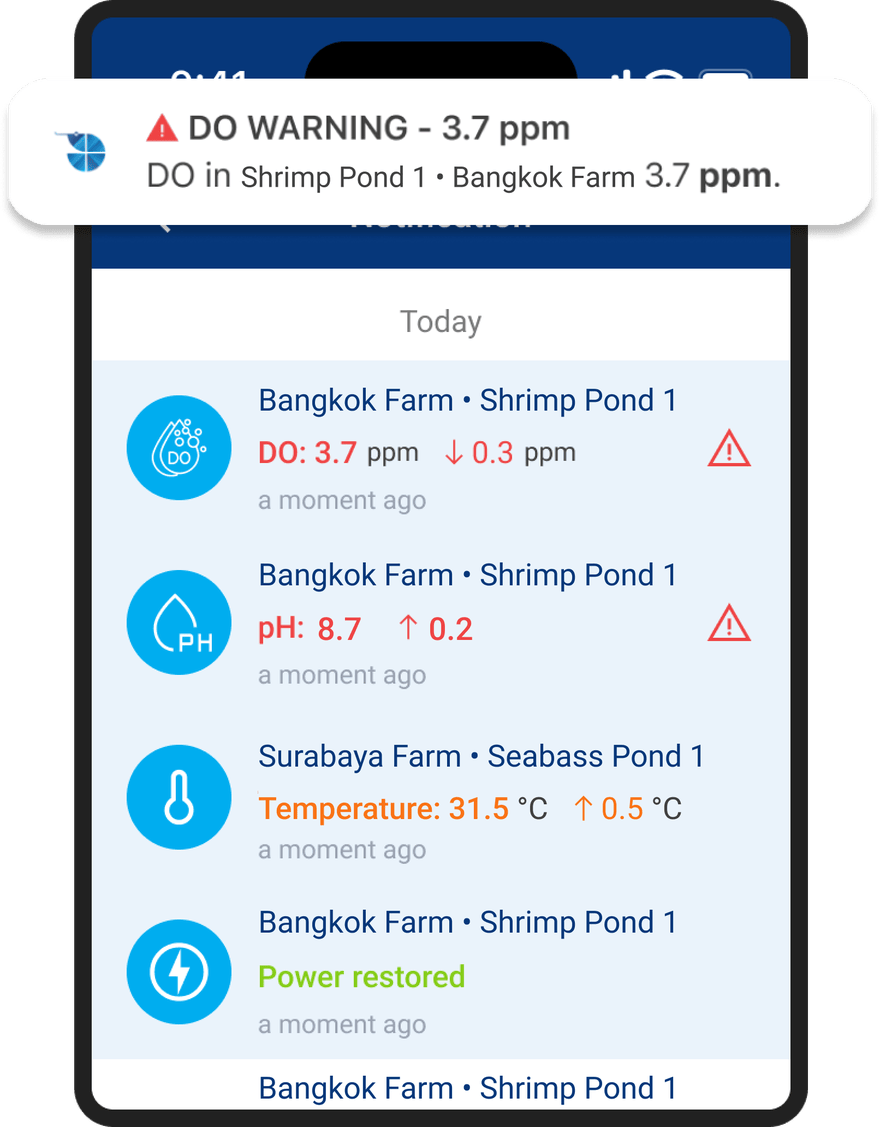

How alerts reach you
With IoT PLUS, alerts land on your phone through FarmOS within the 2-minute connection cycle. With IoT CORE, critical events are reported at the next 4-hour sync. Local DO automation reacts on the controller itself and never waits for the cloud.
The Hardware Monitors and Reacts.
FarmOS Keeps You in Control.
Every controller and sensor on your farm appears in FarmOS, on your phone or in the browser, wherever you are.
-

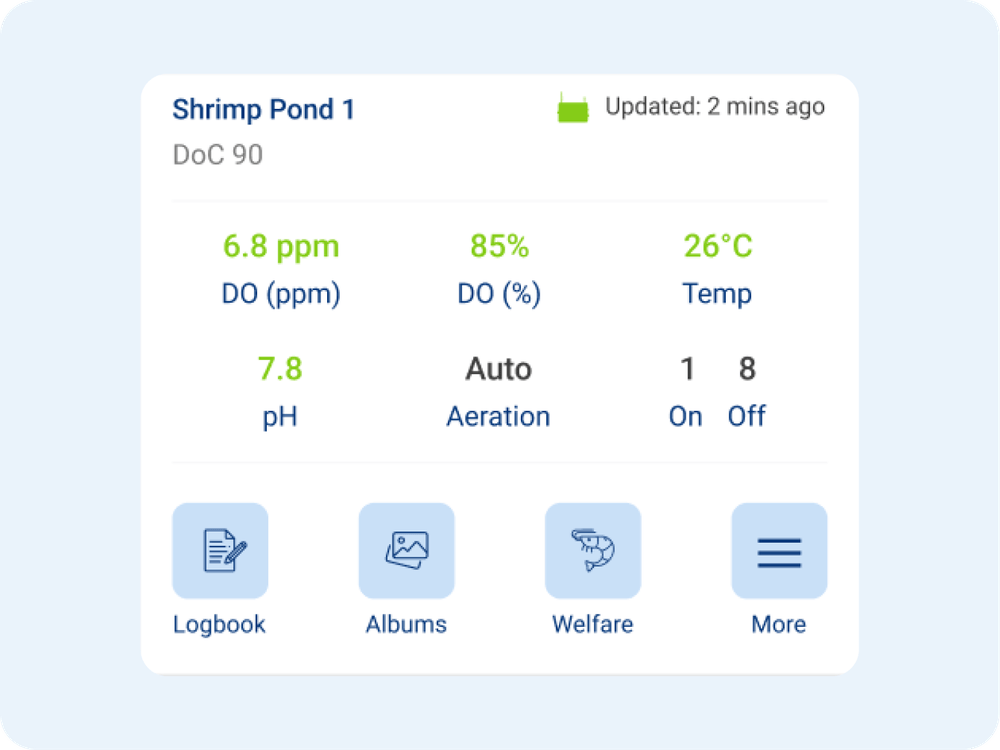

Monitor live conditions
With IoT PLUS, connected sensor readings update in FarmOS every 2 minutes, with historical graphs behind them.
-

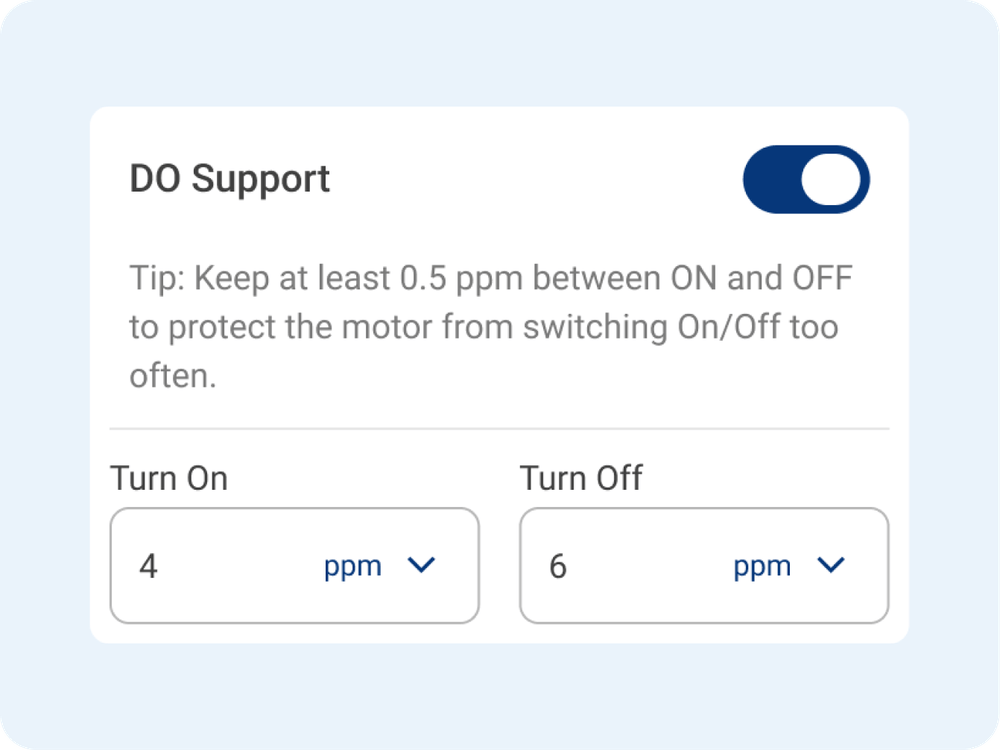

Configure automation
With IoT CORE or IoT PLUS, edit DO Support settings remotely in FarmOS. IoT CORE applies changes at the next 4-hour sync; IoT PLUS also adds Schedule and Interval automation with changes applied near real time.
-

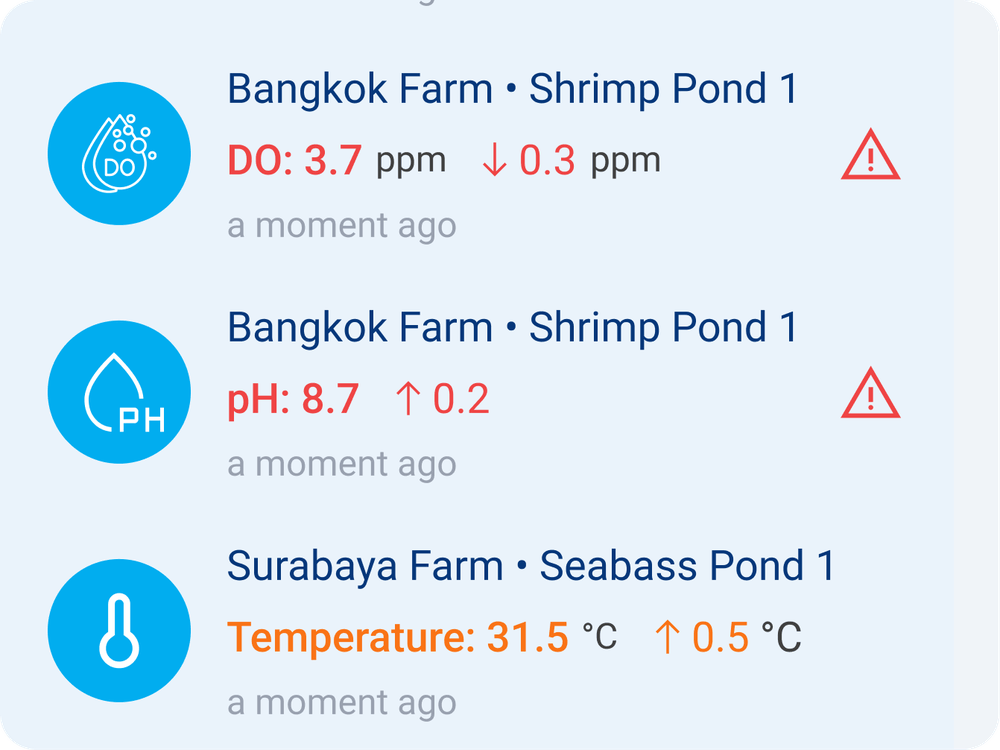

Get alerts, control equipment
Push notifications when thresholds are crossed, and control of connected equipment from the app.
Industrial-Grade Hardware.
Built for the Pond Side.
See the sensors, controllers and automation components that make up your HydroNeo system.
-
Core
Processing Unit

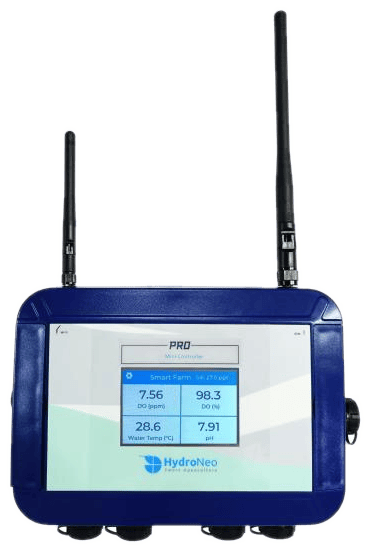

Mini Controller Pro
- Power: 12.3 VDC, 3.75A
- Display: 3.5" color touchscreen
- Connectivity: GSM (primary) / Wi-Fi
View specificationsHide specifications
- Battery Backup: 2 hours (Li-ion)
- Rating: IP65 | Weight: 1.2 kg
- Size: 21 × 15 × 5 cm
-
Core

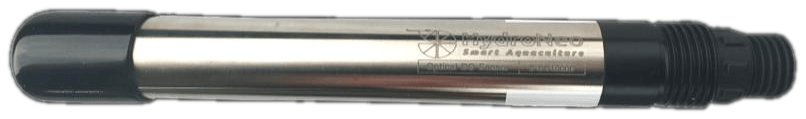

Water Quality SensorOptical DO & Temperature Sensor
- Technology: Fluorescence-based optical
- DO Range: 0 to 200% saturation / 0 to 20 mg/L
- Accuracy: ±3% or 0.11 mg/L at 29°C
View specificationsHide specifications
- Temp Range: 0 to 50°C
- Rating: IP68 | Housing: Titanium Alloy + POM
- No membranes, no electrolyte, no warm-up
- Serviceability: Replaceable optical cap (~annual)
-
Core

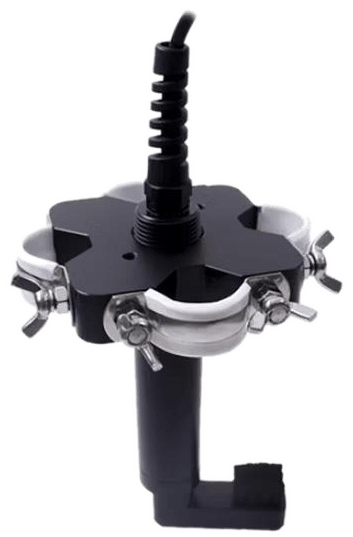

Mounting & MaintenanceSelf-Cleaning Sensor Holder
- Type: Motorized brush, auto-cleaning
- Sensor Slots: 4
- Cleaning Interval: Every 30 minutes
View specificationsHide specifications
- Power: 12 to 24 VDC
- Cable: 15 m, 4-core, 6 mm
- Extends manual cleaning intervals by up to two weeks
-
Core

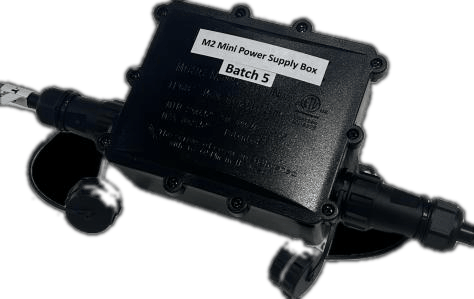

PowerExternal Power Supply
- Input: 90 to 264 V AC / 127 to 370 V DC
- Output: 12.3 VDC, 3.75A
- Surge Protection: Up to 275V
View specificationsHide specifications
- Size: 15 × 11 × 5.5 cm | Weight: ~0.7 kg
- Cable Length: 2 × 2 m
-
Add-on

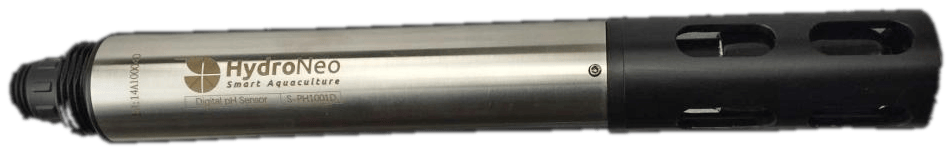

Water Quality Sensor · Add-OnDigital pH Sensor
- Measuring Range: pH 0 to 14
- Accuracy: ±0.1 pH
- Calibration: Two-point (pH 7 & pH 10), weekly recommended
View specificationsHide specifications
- Temp: Auto-compensated, 0 to 50°C
- Rating: IP68 | Cable: 15 m
- Serviceability: Replaceable glass electrode
-
Add-on

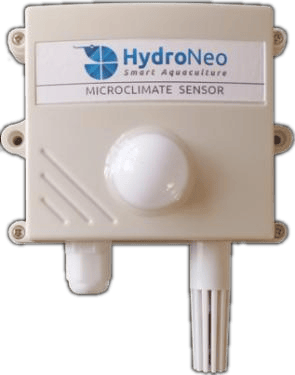

Environmental Sensor · Add-OnMicro-Climate Sensor
- Light Intensity: 0 to 65,535 lux (±7%)
- Air Temperature: -40 to 60°C (±0.3°C)
- Humidity: 0 to 80% RH (±2% RH)
View specificationsHide specifications
- Cable Length: 2 m
- Maintenance: Monthly dust wipe
-
Add-on

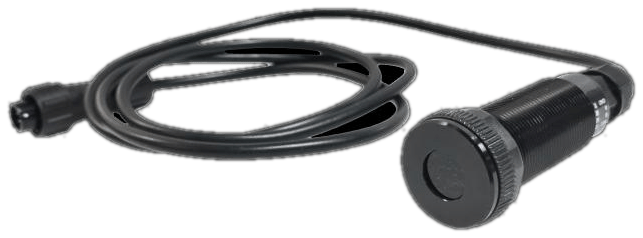

Feed Management · Add-OnFeed Level Sensor
- Technology: Ultrasonic
- Measuring Distance: 4 to 400 cm
- Accuracy: ±2 cm
View specificationsHide specifications
- Operating Temp: -20 to 70°C
- Rating: IP67 | Cable: 15 m
- Calibration: One-time during setup
- Maintenance: Gentle wipe as needed
-
Add-on
Automation & Control · Add-On
Motor Control Box (MCB-M)
- Voltages: 220V / 380V
- Motor Sizes: 1, 3, and 5 HP
- Channels: 2 independently controlled
View specificationsHide specifications
- Contactors: Mitsubishi with overload protection
- Up to 16 MCBs / 32 channels per Mini Controller Pro
- Integrated siren for safety alerts
-
Add-on
Retrofit Automation
Upgrade Box-M
- Channels: 2 independently controlled
- Connects to existing electrical infrastructure
- Plug-and-play waterproof connection
View specificationsHide specifications
- Daisy-chainable with other MCBs
- Integrated siren for safety and alerts
-
Add-on

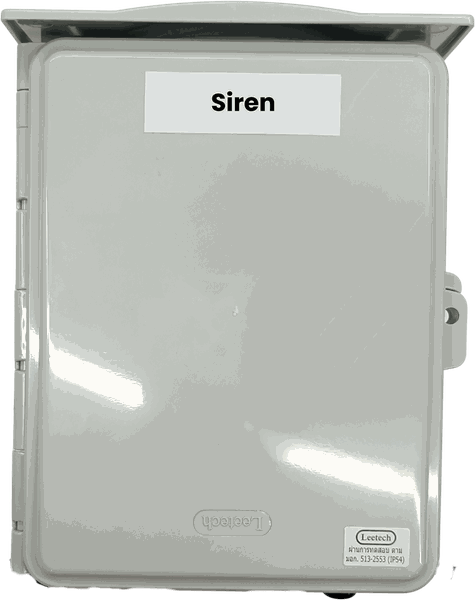

AlertsStand-Alone Siren
- Independent audio alarm for safety and alerts
- Triggers: Low DO, sensor faults, custom alert rules
- Connectivity: Waterproof data socket, daisy-chainable
View specificationsHide specifications
- Housing: Outdoor-rated, weather-resistant
- Configured through the FarmOS app
The Optical DO & Temperature Sensor ships as standard; other sensors are add-ons, and Motor Control Boxes are ordered per motor you automate. All readings are temperature-compensated, and DO is also salinity-compensated per the value you set for each pond.
From Box to Live Farm.
In Under 60 Minutes.
Watch it happen, then do it yourself: your own farm team, the guide in the box, no outside contractor.
Mount
Post or wall on the dry side of the pond. Plug in the power supply and the touchscreen is on.
- IP65-rated, 2-hour battery backup built in
Connect Sensors
Sensors click into the holder, color-coded so you can't get it wrong. Run the cable back to the controller.
- IP68-rated for permanent submersion
Connect Equipment
Daisy-chain Motor Control Boxes to the aerators and pumps you want to automate.
- Up to 16 boxes, 32 motor channels, per controller
Go Live
The built-in SIM connects automatically. Scan a QR code in FarmOS, calibrate in minutes, set your thresholds.
- DO calibration: ambient air only, no tools or solutions needed
Built to Handle
Heat, Humidity and Power Cuts.
Designed to survive a working farm, and to keep automating locally even when the network doesn't.
-
01
IP65 / IP68
Environmental protection
Sealed against heat, humidity, dust, and splashes.
-
02
2 hr
Battery backup
Monitoring holds up when power gets unstable.
-
03
Local
On-device automation
Rules keep running even when connectivity drops.
-
04
~40
Countries connected
Built-in IoT SIM, plus Wi-Fi or your own SIM anywhere else.
Certifications & Data Protection
- NBTC Class B certified (Thailand telecom compliance)
- EMC-compliant for electromagnetic compatibility
- Signed OTA firmware updates delivered automatically
- Tested to IEC 62368-1:2018 (electrical safety standard)
- Encrypted communication across controller, cloud, and app
- Automated cloud backup for long-term data retention
The Controller Is Yours.
Connectivity Is Your Choice.
Mini Controller Pro keeps its essential local functions for the lifetime of the device, even without an internet connection or IoT subscription.
Mini Controller Pro
Works locally
Essential functions that stay with your controller.
-
Local sensor readings
View connected DO and temperature readings directly on the controller.
-
On-device calibration
Calibrate supported sensors directly from Mini Controller Pro.
-
Local DO automation
DO Support runs directly on the device and continues working without cloud connectivity.
- No internet required
- No subscription required
- Included for the lifetime of the device
Want remote access through FarmOS?
Add IoT CORE or IoT PLUS to connect your Mini Controller Pro to HydroNeo cloud services.
Every 4 hours
Periodic cloud connectivity for farmers who do not need near real-time monitoring.
- Cloud sync every 4 hours
- Current, minimum, maximum and median readings from the preceding period
- Critical event notifications at the next sync
- Remote DO automation settings
- Firmware and OTA updates
- Ticket support
Every 2 minutes
Near real-time visibility and control for farms that need faster response.
- Sensor data every 2 minutes
- Near real-time alerts and notifications
- DO, Schedule and Interval automation
- Remote changes applied near real time
- Premium support
- 15% spare parts discount
12 Months of IoT PLUS Included
Every Mini Controller Pro starts with the full connected HydroNeo experience for the first 12 months.
Choose what fits your farm.
- Keep IoT PLUS
- Switch to IoT CORE
- Stay local
Whatever you choose, your Mini Controller keeps working locally.
Mini Controllers Running
On Farms Around the World.
The Mini Controller Pro isn't confined to one region, it's already monitoring and automating ponds on farms across many countries, in a wide range of climates and species. Here's what a few of those farmers have to say.
I monitor oxygen 24/7 and use the automation feature for the aerator motors. I've used HydroNeo for 2 years now and my electricity bill reduced from 850 USD per month to approximately 490 USD per month per pond.
HydroNeo improved my farm management and reduced my electricity bills by over 30%. The real-time monitoring helps manage risks. I no longer worry about shrimp dying from insufficient oxygen. I can travel for many days without worries because I take care of my farm through the app.
HydroNeo is incredibly helpful in emergencies, like when oxygen drops at night without us knowing. The system notifies us through the mobile app, so we can take action immediately. Having HydroNeo is like having insurance for our farm.
I needed digital tools to assist with farm management. Then I discovered how much energy I could save with HydroNeo's automatic aerator control based on oxygen measurements. I now save an additional 170 USD per rai on my electricity bill every month.
At our stocking densities, oxygen is everything. There is no margin for error. HydroNeo lets me push intensification with confidence because I see DO live, all the time, on every pond. The automation responds before I even reach for the phone.
Shrimp farming used to be about feel and experience. With HydroNeo it has become a skill-driven, science-based practice. I make decisions on data, not on hope. The cycle-over-cycle improvements are visible in every report.
1,300 tests. That's how many times Aqua Pharma validated HydroNeo DO sensor accuracy before fully trusting HydroNeo data. The results from our Indonesia farm gave us full confidence that this system was built to a standard we could stand behind scientifically. What sealed it was HydroNeo's openness to improve alongside us throughout the entire testing process.
I monitor oxygen 24/7 and use the automation feature for the aerator motors. I've used HydroNeo for 2 years now and my electricity bill reduced from 850 USD per month to approximately 490 USD per month per pond.
HydroNeo improved my farm management and reduced my electricity bills by over 30%. The real-time monitoring helps manage risks. I no longer worry about shrimp dying from insufficient oxygen. I can travel for many days without worries because I take care of my farm through the app.
HydroNeo is incredibly helpful in emergencies, like when oxygen drops at night without us knowing. The system notifies us through the mobile app, so we can take action immediately. Having HydroNeo is like having insurance for our farm.
I needed digital tools to assist with farm management. Then I discovered how much energy I could save with HydroNeo's automatic aerator control based on oxygen measurements. I now save an additional 170 USD per rai on my electricity bill every month.
At our stocking densities, oxygen is everything. There is no margin for error. HydroNeo lets me push intensification with confidence because I see DO live, all the time, on every pond. The automation responds before I even reach for the phone.
Shrimp farming used to be about feel and experience. With HydroNeo it has become a skill-driven, science-based practice. I make decisions on data, not on hope. The cycle-over-cycle improvements are visible in every report.
1,300 tests. That's how many times Aqua Pharma validated HydroNeo DO sensor accuracy before fully trusting HydroNeo data. The results from our Indonesia farm gave us full confidence that this system was built to a standard we could stand behind scientifically. What sealed it was HydroNeo's openness to improve alongside us throughout the entire testing process.
Ready for Ponds That
Watch Themselves?
Tell us about your ponds and our team will help you size the right Mini Controller, sensor, and Motor Control Box setup for your operation.
By submitting, you acknowledge our Privacy Policy. We never sell your data.
